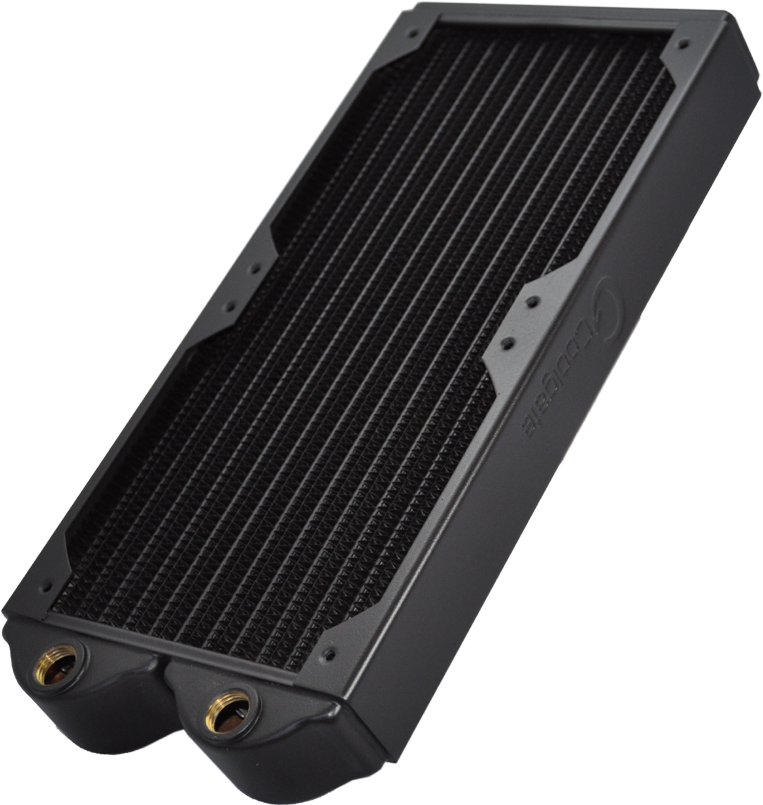

- Material: Copper fins, brass chambers
- Color: 2 µ black paint; copper plating optional
- Fins spacing: 20 FPI (Fins Per Inch)
- Dimension: 280 mm x 129 mm x 35 mm
- Tube: Single rows, 19 mm x 2 mm
- Connection thread: 3x G1/4” threads
- Weight: 680 g
- Liquid Volume: 105 ml
- Pressure tested: 1,5 bar
- Mounting: 8x N6-32 UNC on both sides for 120 mm
fan installation
|
-
HD FIN
CONFIGURATION
High Density FPI (fins per inch) is designed for
highest perfomance.
-
GREEN
ENERGY
Protect environment by using RoHS compliant
components, recycled materials and lead-free
production.
-
EASE OF USE
4 G1/4” threads and UNC 6-32 screw threads
allow multiple and flexible installations and
configurations.
-
HIGH FLOW
OPTIMIZED
Minimal water
resistance and achieve optimal cooling performance.
-
THREE YEARS
WARRANTY
Based on long-standing professional
research, development and production
we provide full 3
years warranty on Coolgate heat exchangers.
|
