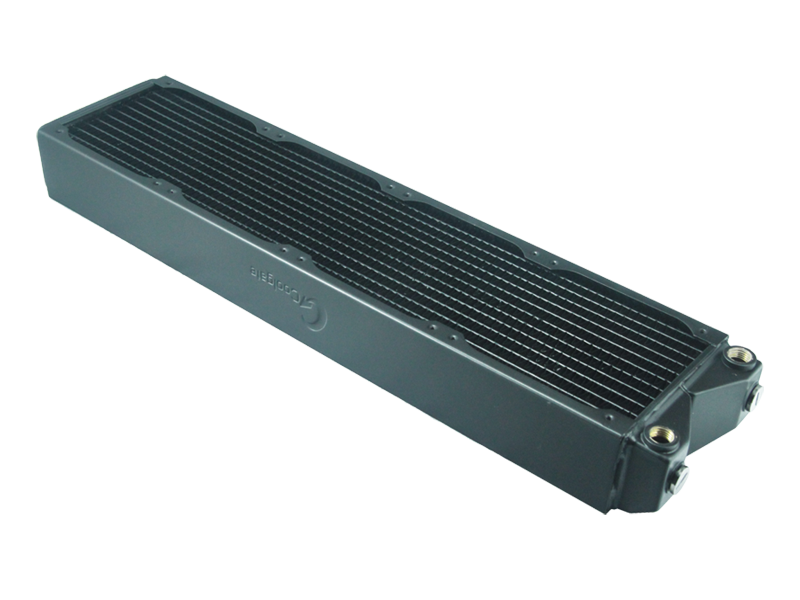

Products -> Radiators -> Quad 120 mm


[Pictures]

[Features and Specifications]
  • Tubes with 90% copper contingent
  • Tubes Triple Row 13mm x2mm
  • Material: Copper Fins, Brass Chambers
  • 7 FPI (Fins per inch)
  • 4 x G 1/4 Threads
  • Weight: 1780 g
  • Liquid Volume: 500 ml
  • Pressure Tested: 1.5 Bar
  • Dimensions: 533,6 x 124 x 60 mm
  • 6-32 UNC threads on both sides for push pull with 120 mm fans











  • PERFECT HEAT TRANSMISSION
    Optimal FPI (fins per inch) is designed for low speed fans to guarantee silent operation
  • GREEN ENERGY
    Protect environment by using RoHS compliant components, recycled materials and lead-free production
  • EASE OF USE
    4 G1/4” threads and UNC 6-32 screw threads allow multiple and flexible installations and configurations
  • HIGH FLOW OPTIMIZED
    Triple parallel rows minimize water resistance and achieve optimal cooling performance
  • THREE YEARS WARRANTY
    Based on long-standing professional research, development and production
    we provide full 3 years warranty on Coolgate heat exchangers
[Awards and Reviews]

[Downloads]

German Review by Cartago (2x Gold)

English/US Review by Cartago (2x Gold)
